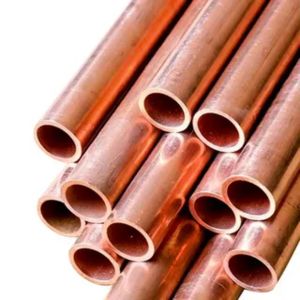

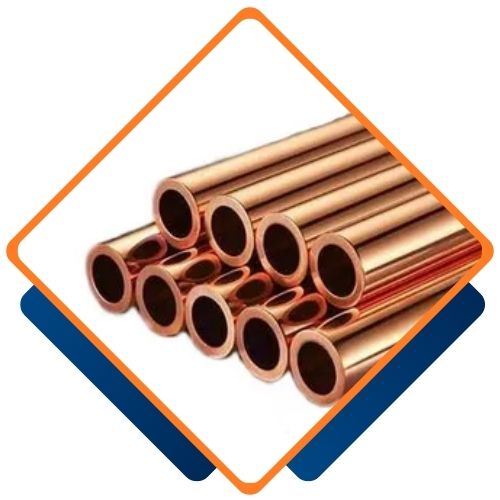

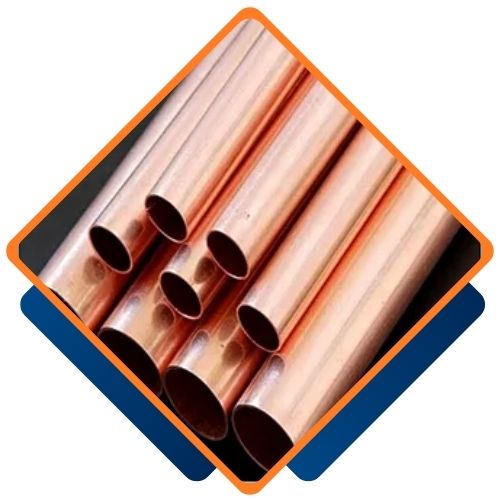

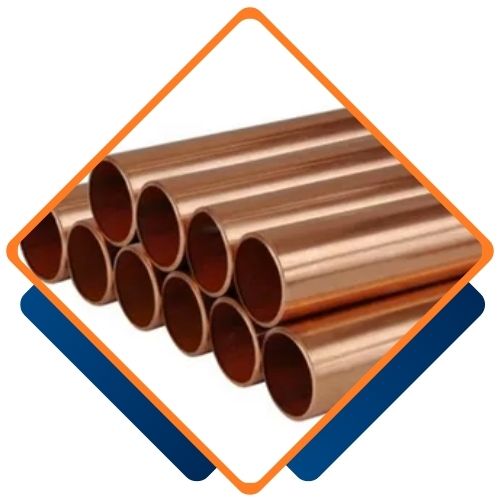

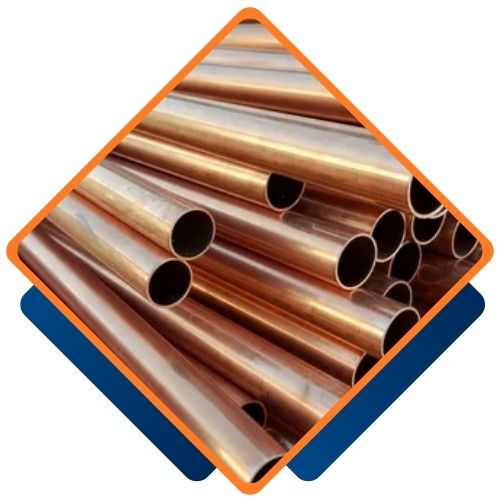

Copper Nickel 90/10 Pipes are engineered to deliver unmatched durability, corrosion resistance, and reliability in the harshest marine and industrial environments. With a higher copper content, these pipes provide excellent thermal conductivity, long-term stability, and superior resistance to seawater corrosion, biofouling, and oxidation. Designed to perform under high pressure, fluctuating temperatures, and continuous exposure to aggressive fluids, they ensure leak-free, dependable operation. Trusted in shipbuilding, offshore platforms, desalination plants, and power generation systems, Copper Nickel 90/10 Pipes combine strength, longevity, and low maintenance. When performance and reliability are critical, these pipes stand firm where others fail.
Copper Nickel 90/10 Pipes are made up of about 90% copper and 10% nickel, with small amounts of iron (1.5%) and manganese (1%) added to boost strength and corrosion resistance. These pipes boast a tensile strength between 310–350 MPa and a yield strength of around 100–130 MPa, along with excellent ductility that allows for elongation up to 35%. The alloy is known for its remarkable resistance to seawater corrosion, stress corrosion cracking, and biofouling. It also maintains high thermal conductivity and mechanical stability at elevated temperatures, making it perfect for systems that face aggressive marine or industrial conditions.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

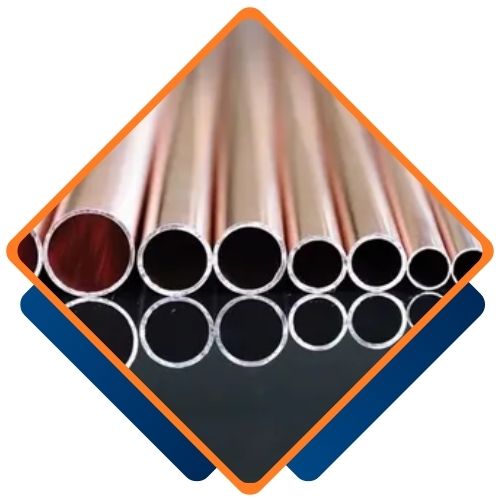

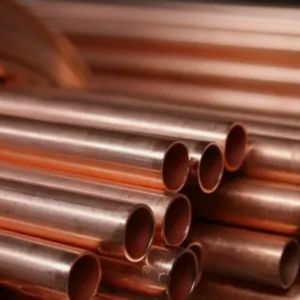

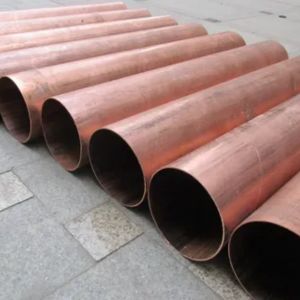

Types : Seamless / ERW / Welded / EFW / Fabricated / CDW

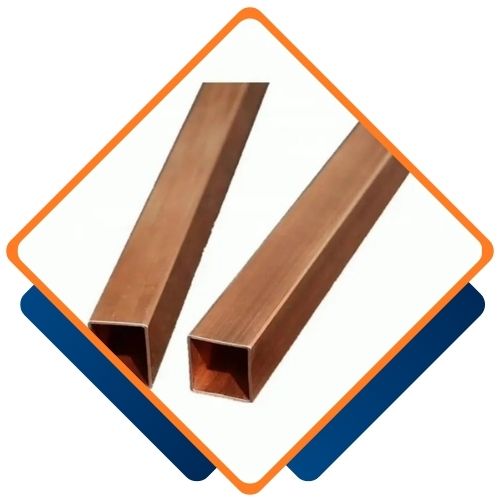

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 90/10 Pipes from Samia Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Samia Pipes and Tubes, one of the largest suppliers of Copper Nickel 90/10 Pipes in Tunis, Tunisia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| ASTM B466 C70600 | JIS H 3300 C7060 | BS 2871 CN 102 | DIN 86019 CuNi10Fe1.6Mn 2.1972 | MIL-T-16420K C70600 | EEMUA 234 UNS 7060X | |
|---|---|---|---|---|---|---|
| Fe% | 1.0-1.8 | 1.0-1.8 | 1.0-2.0 | 1.5-1.8 | 1.0-1.8 | 1.5-2.0 |
| Ni% | 9.0-11.0 | 9.0-11.0 | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 10.0-11.0 |
| Cu% | Balance | Cu+Ni +Fe+Mn Min.99.5 | Balance | Balance | Min.86.5 | Balance |
| Mn% | Max.1.0 | 0.2-1.0 | 0.5-1.0 | 0.5-1.0 | Max1.0 | 0.5-1.0 |
| Pb% | Max.0.02 | Max.0.05 | Max.0.01 | Max.0.03 | Max.0.02 | Max.0.01 |
| C% | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | |
| Zr% | Max.0.03 | |||||
| P% | Max.0.02 | Max.0.02 | Max.0.02 | Max.0.02 | ||
| S% | Max.0.02 | Max.0.05 | Max.0.015 | Max.0.02 | Max.0.02 | |
| Zn% | Max.0.50 | Max.0.50 | Max.0.15 | Max.0.05 | Max.0.20 | |
| Others | Max.0.30 | Max.0.30 | Max.0.30 |
Yes, we offer custom sizes for Copper Nickel 90/10 Pipes to meet your specific requirements. Our team at Samia Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@samiapipes.com.
| Dimension Tolerance | |||||
| Material | Ultimate Tensile Strength1000 psi (MPa) | Yield Strength 0.5% Ext.under Load 1000 psi (MPa) | YElongation % in 2 in. | Fatigue Strength (10×7 cycles) 1000 psi (MPa) | Burst Pressure* 1000 psi (MPa) |
| Copper-brazed Steel | 48-55 (0.330-0.380) | 28-34 (0.190-0.235) | 30-40 | 30 (0.210) | 19.5 (0.135) |
| C12200-Phosphorus deoxidized Copper | 32-38 (0.220-0.265) | 10-14 (0.070-0.100) | 45-60 | 10 (0.070) | 12 ( 0.083) |
| C70600-Copper Nickel 90-10 | 48-54 (0.330-0.370) | 16-22 (0.110-0.150) | 40-55 | 15 (0.100) | 19 (0.130) |
Copper Nickel 90/10 Pipes find their primary use in marine and offshore applications, thanks to their outstanding resistance to seawater corrosion and biological fouling. They are commonly utilized in seawater cooling systems, ballast water lines, firefighting pipelines, and bilge and sanitary systems on ships and offshore platforms. In desalination plants, these pipes are essential for brine heaters, evaporator tubing, and condensers. The alloy’s durability and ease of welding also make it a great choice for heat exchangers, power plants, and chemical processing units.
