Home > Stainless Steel > Stainless Steel 317 Tubing
Samia Pipes and Tubes is a trusted manufacturer and supplier of Stainless Steel 317 Tubing, based in Tunis, Tunisia. The company is known for supplying high-performance tubing engineered for demanding industrial environments. Stainless Steel 317 tubing offers superior corrosion resistance, particularly against aggressive chemicals and acidic media, due to its higher molybdenum content. Samia Pipes and Tubes ensures strict quality control, precise dimensional tolerances, and excellent surface finish. With a commitment to reliability, timely delivery, and customer satisfaction, the company serves chemical, petrochemical, marine, and power generation industries worldwide.
Stainless Steel 317 Tubing is a molybdenum-containing austenitic stainless steel alloy containing 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The higher content of molybdenum offers improved resistance to pitting, crevice corrosion, and general corrosion, particularly in acidic and chloride-containing environments. The tubing possesses tensile strength ranging from 515–760 MPa and yield strength of around 205 MPa. It also possesses good mechanical properties at higher temperatures and is ideal for forming, welding, and fabricating under harsh service conditions.
| Tube Standard | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Tube Dimension | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Tube Sizes | 1 / 2″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Tube Manufacturing Process | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Stainless Steel Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Tube Length | Single Random, Double Random, Standard & Cut length |
| Tube End Types | Plain Ends (PE), Threaded Ends (TE), Bevelled Ends (BW), Grooved Mechanical Joints or Grooved Ends, TBE (Treaded Both Ends) |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317 | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 | – |
| max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 14.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317 | 515 | 205 | 35 | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 317 Tubing is an austenitic alloy containing high levels of chromium, nickel, and molybdenum, which significantly enhances resistance to pitting and crevice corrosion. The increased molybdenum content improves strength and durability in severe corrosive environments. This grade provides good tensile and yield strength, excellent ductility, and toughness over a wide temperature range. Stainless Steel 317 also offers good weldability and formability, making it suitable for fabrication in critical industrial applications requiring long-term performance.
Samia Pipes and Tubes, one of the largest suppliers of Stainless Steel 317 Tubing in Tunis, Tunisia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

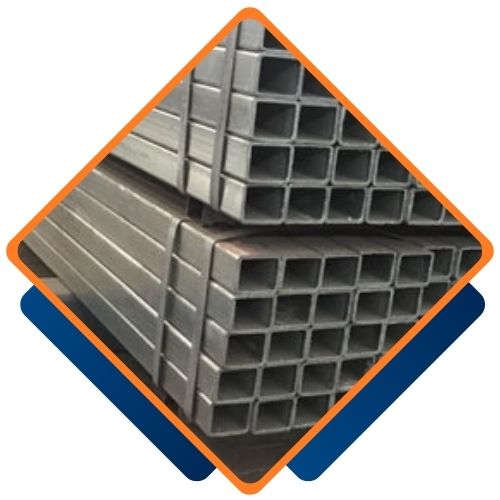

| Dimensions | Wall | Weight per | Dimensions | Wall | Weight per | |
|---|---|---|---|---|---|---|
| (mm) | (mm) | metre (kg) | (mm) | (mm) | metre (kg) | |
| 12.7 x 12.7 | 1.20 | 0.44 | 40 x40 | 1.20 | 1.49 | |
| 12.7 x 12.7 | 1.50 | 0.55 | 40 x40 | 1.50 | 1.85 | |
| 15 x 15 | 1.20 | 0.53 | 40 x40 | 2.00 | 2.45 | |
| 15 x 15 | 1.50 | 0.65 | 40 x40 | 3.00 | 3.75 | |
| 20 x 20 | 1.20 | 0.71 | 50 x50 | 1.50 | 2.32 | |
| 20 x 20 | 1.50 | 0.88 | 50 x50 | 2.00 | 3.08 | |
| 20 x 20 | 2.00 | 1.19 | 50 x50 | 3.00 | 4.65 | |
| 25 x 25 | 1.20 | 0.92 | 60 x60 | 2.00 | 3.71 | |
| 25 x 25 | 1.50 | 1.14 | 60 x60 | 3.00 | 5.49 | |
| 25 x 25 | 2.00 | 1.49 | 70 x70 | 3.00 | 6.53 | |
| 25 x 25 | 3.00 | 2.20 | 80 x80 | 2.00 | 4.98 | |
| 30 x 30 | 1.20 | 1.10 | 80 x80 | 3.00 | 7.53 | |
| 30 x 30 | 1.50 | 1.37 | 100 x 100 | 2.00 | 6.40 | |
| 30 x 30 | 2.00 | 1.84 | 100 x 100 | 3.00 | 9.53 | |
| 30 x 30 | 3.00 | 2.72 | ||||
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 317 | 8000 | 193 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 740 |
|
OD Size
Inches |
Tolerances, Inches |
||
|
OD,
Inches |
Wall |
Cut
Length (a), In. |
|
|
Less than 1 |
±0.004 |
All Sizes
± 10% |
+1/8–0 |
|
1 to 1-1/2 |
±0.006 |
||
|
Over 1-1/2 to 2 |
±0.008 |
||
|
Over 2 to 2-1/2 |
±0.010 |
+3/16–0 |
|
|
Over 2-1/2 to 3 |
±0.012 |
||
|
Over 3 to 4 |
±0.015 |
||
|
Over 4 to 5 |
+0.015
– 0.025 |
||
Yes, we offer custom sizes for Stainless Steel 317 Tubing to meet your specific requirements. Our team at Samia Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@samiapipes.com.
Stainless Steel 317 Tubing is widely used in industries that require exceptional corrosion resistance and mechanical reliability. Common applications include chemical processing equipment, heat exchangers, pulp and paper plants, and pollution control systems. It is also used in oil and gas refineries, petrochemical units, and marine environments where exposure to chlorides and acids is common. Additionally, Stainless Steel 317 tubing is suitable for food processing, pharmaceutical equipment, and high-pressure piping systems operating under harsh conditions.
